Modular Solutions
Modular Solutions by Aastha Cleanrooms provide reliable clean environments using prefabricated wall systems, ceiling panels, modular cleanroom doors, view panels, integrated risers, and flooring solutions.
These modular systems are quick to install and easily adaptable to project requirements. They help maintain controlled airflow, pressure balance, and hygiene levels essential for effective contamination control. Aastha Cleanrooms’ modular solutions are used across pharmaceutical, healthcare, electronics, biotechnology, solar, cosmetics, and food sectors while allowing flexibility for future modifications or expansion.
Our Turnkey Modular Solutions
Modular Wall
Standard and customized solutions designed for durability, modularity, and global compliance.
Modular Ceiling
Seamless, contamination-resistant ceilings that ensure strength, insulation and easy integration.
Modular Sterile Door
Air-tight and ergonomically designed, ensuring secure, contamination-free access with added safety and comfort.
Modular View Panels
Cleanroom-compliant, designed to provide clear visibility while maintaining safety, durability, and structural integrity under stringent controlled environment standards.
Integrated Risers
Return Air Risers preserve cleanroom integrity by efficiently directing return airflow to the HVAC system for advanced filtration and controlled recirculation.
Flooring Solutions
Crafted with durable, anti-static, and hygienic finishes, our surfaces are engineered to withstand rigorous operations while maintaining superior cleanroom integrity.

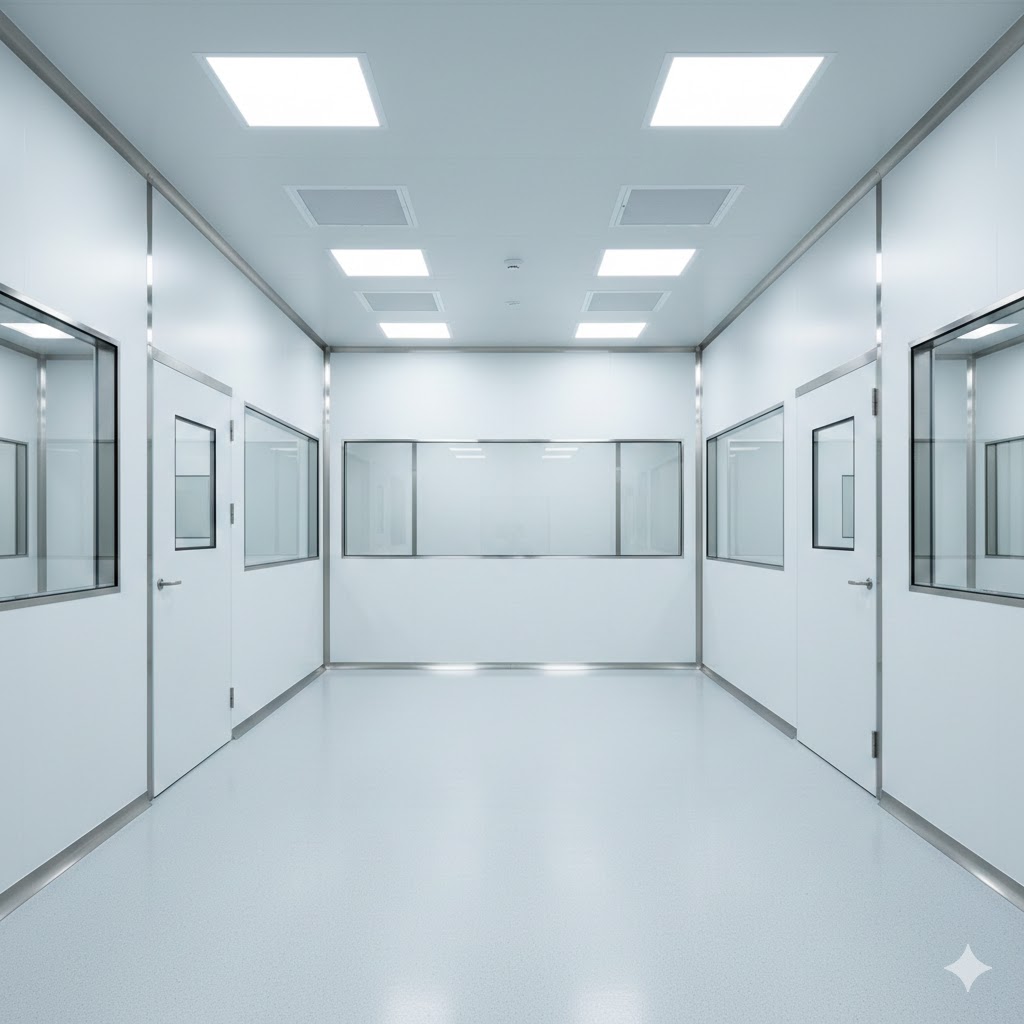

Cleanroom Wall Panels
Modular panels with extruded aluminum profiles and high-density insulated cores for fast installation, flexibility, and long-term durability.
Material Options
Premium surface materials for any cleanroom application.
- Pre-Coated / Powder Coated (0.6–0.8 mm)
- Stainless Steel (0.8–1.2 mm)
- HPL (3 mm)
Insulation
High-performance thermal and acoustic insulation cores.
- Rockwool
- PUF (FR Grade)
- PIR
Integrated Utilities
Supports full utility integration within the panel cavity.
- Electrical & data systems
- HVAC integration
- Piping & emergency systems
Key Benefits
Engineered for performance and efficiency.
- Space-efficient air returns
- Customizable finishes
- Panels up to 6 meters
- Faster installation

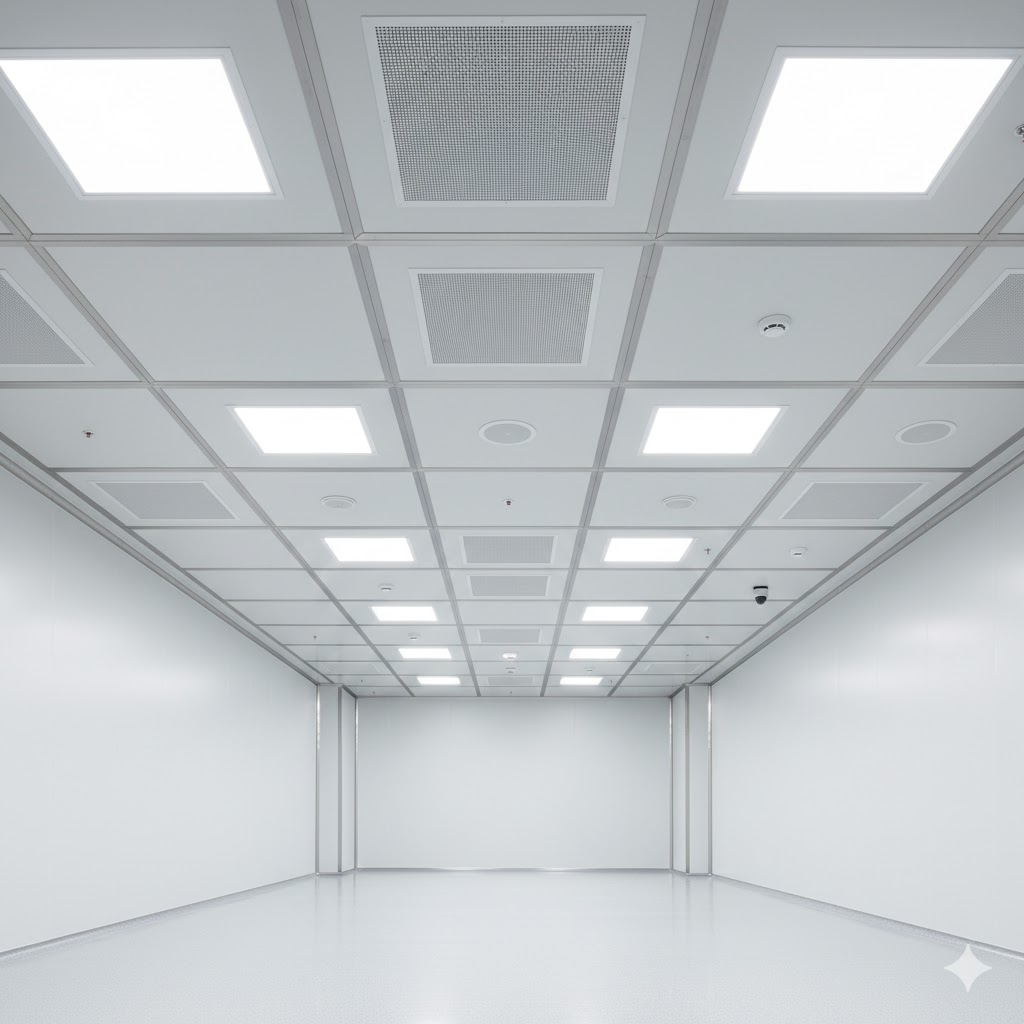

Modular Ceiling System
Self-supporting, walkable ceiling system designed to maintain cleanroom integrity while supporting airflow, lighting, and equipment. Available in 50, 80, and 100 mm thicknesses.
Key Features
Built for structural performance.
- Self-supporting steel structure
- Direct equipment installation
- Integrated HEPA/ULPA filters
- Lights & sprinkler integration
Benefits
Operational efficiency without compromise.
- No catwalks required
- Faster maintenance
- Reduced downtime
- Enhanced safety
Compliance
Meets global cleanroom standards.
- ISO 14644
- EU GMP
- USFDA
- Other cleanroom standards
Insulation
Thermal and acoustic core options.
- PIR
- Rockwool
- PUF (FR Grade)

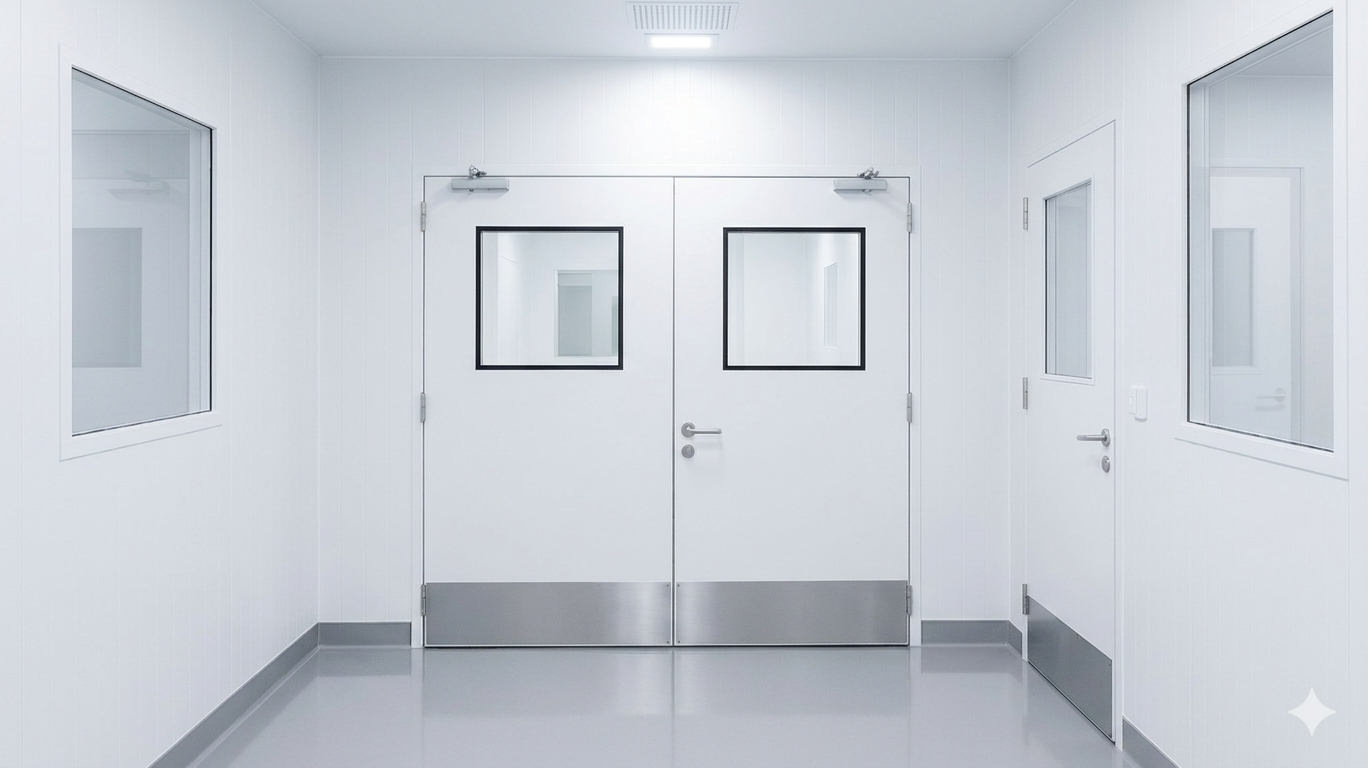

Cleanroom Door Systems
Comprehensive range of door solutions engineered for contamination control, airlock management, and regulatory compliance.
Door Interlock
Controlled airlock access & contamination prevention
| Capacity | Up to 8 Doors |
| Logic | Single Door Open |
| Indicators | LED & Buzzer |
| Features | Air Pressure Control, Programmable |
Glazed Doors
Visibility with contamination control
| Thickness | 50 mm + Frame Ridge |
| Clear Width | 800 – 2000 mm |
| Clear Height | 2100 mm (Standard) |
| Glazing | 5 mm Glass (Single / Double) |
| Frame | Aluminum Extrusion |
| Hardware | SS 304 Handles |
Manual Sliding
Space-saving, cost-effective cleanroom access
| MOC | SS 304 / Powder Coated / HPL / Glass |
| Height | 2100 – 2800 mm |
| Width (Single) | 850 – 1750 mm |
| Width (Double) | 1600 – 3600 mm |
| Thickness | 45 mm |
| Sealing | Perimeter EPDM |
HPL Doors
Impact-resistant, aesthetic, hygienic spaces
| MOC | HPL 3 mm (Wear, flame, stain resistant) |
| Frame | 50 / 80 / 100 mm Aluminum Profile |
| Leaf | 45 mm thickness |
| Infill | PUF / Rockwool |
| Window | Double Tempered Glass |
Stainless Steel Doors
Corrosion-resistant hygienic environments
| MOC | SS 304 / 316 |
| Frame | 1.2 mm SS (Brush) / Powder Coated |
| Leaf | 45 mm |
| Infill | PUF / Rockwool |
| Leaves | Single / Double |

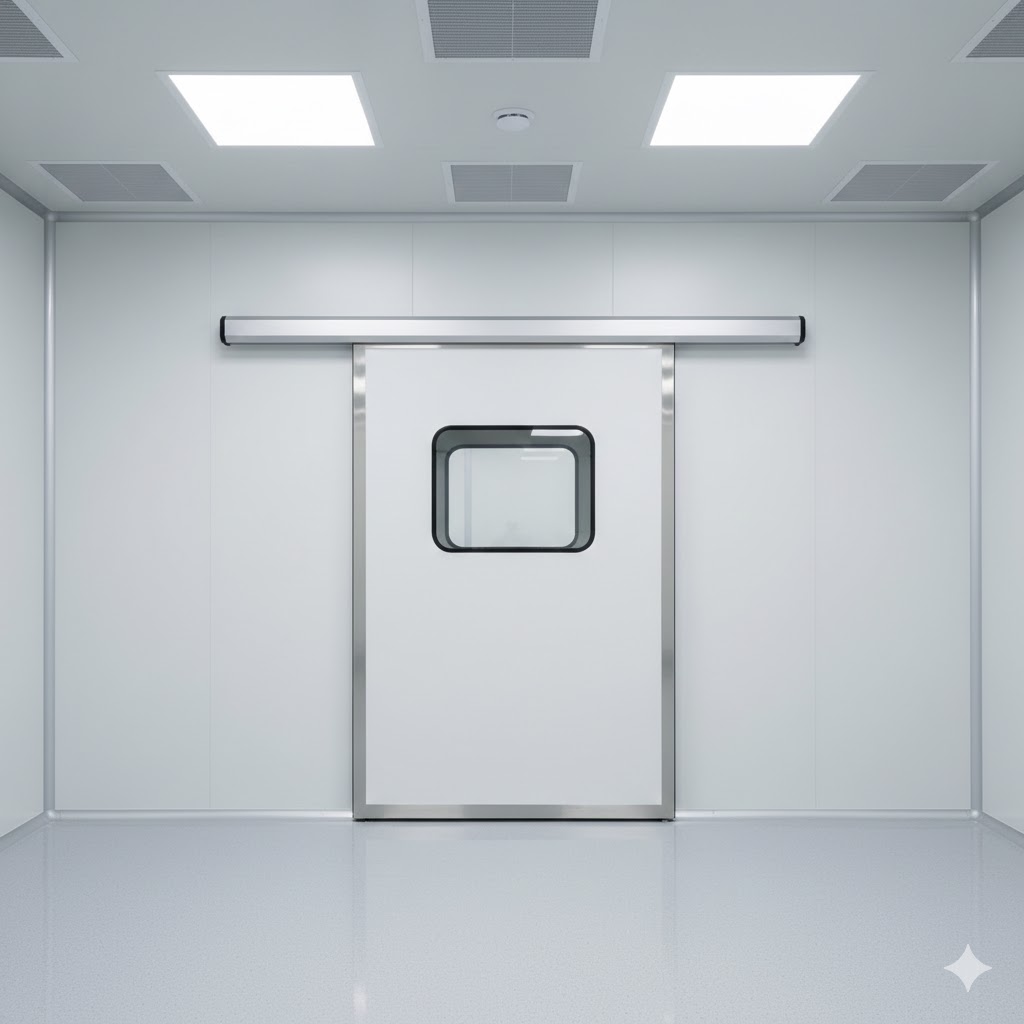

Automatic Sliding
Touch-free hygienic operation with interlocking
| MOC | SS 304 / Powder Coated / HPL / Glass |
| Height | 2100 – 2800 mm |
| Width | 900 – 3600 mm |
| Opening | Automatic |
| Operator | Hermetic |
| Sealing | Perimeter EPDM |
Hermetic Swing
Airtight barrier for cleanrooms, pharma, labs
| MOC | Powder Coated |
| Frame | 50 / 80 / 100 mm |
| Leaf | 45 mm, 0.8 mm GI |
| Infill | PUF / Rockwool |
| Leaves | Single / Double |
Fire Exit
Safe evacuation with contamination control
| Features | Flush wall alignment |
| Hardware | Panic hardware |
| Sealing | Airtight |
| MOC | GI / SS / HPL |
| Compliance | Fire & safety compliant |

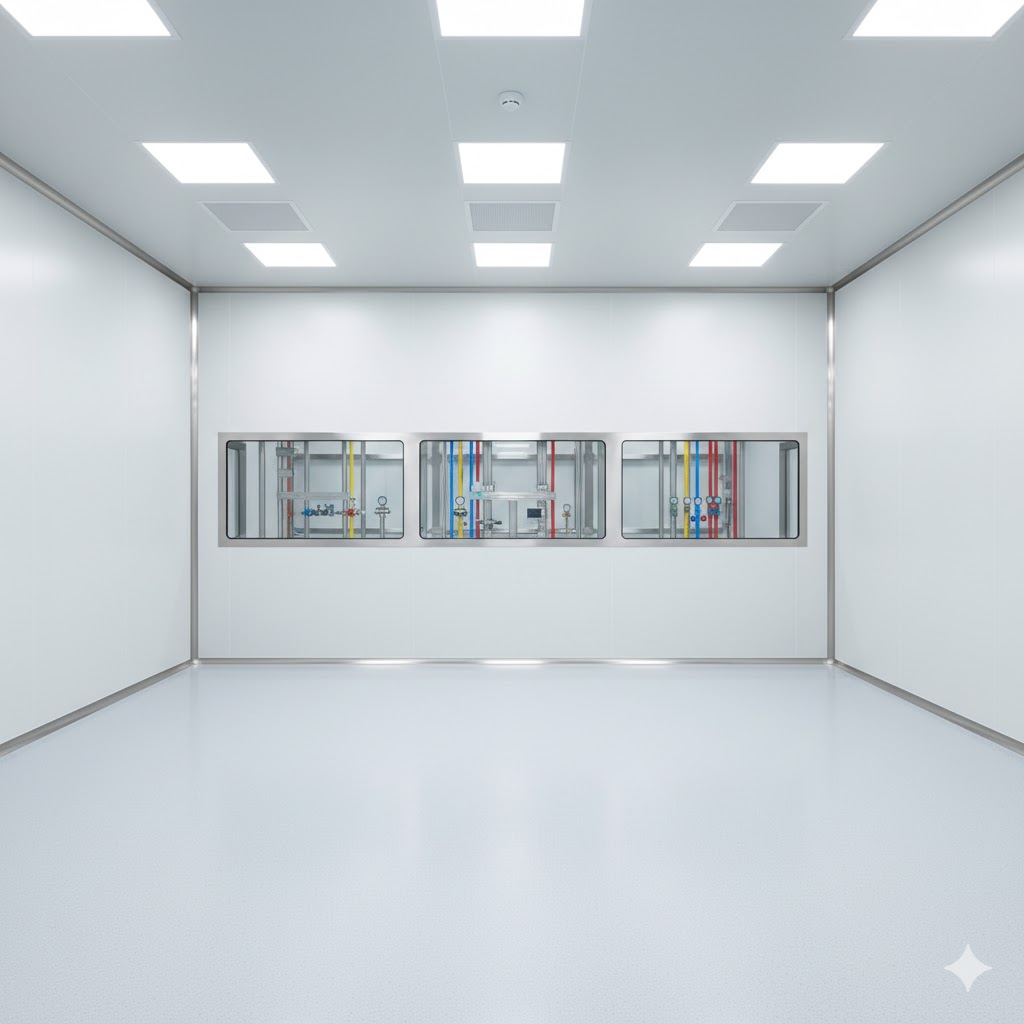

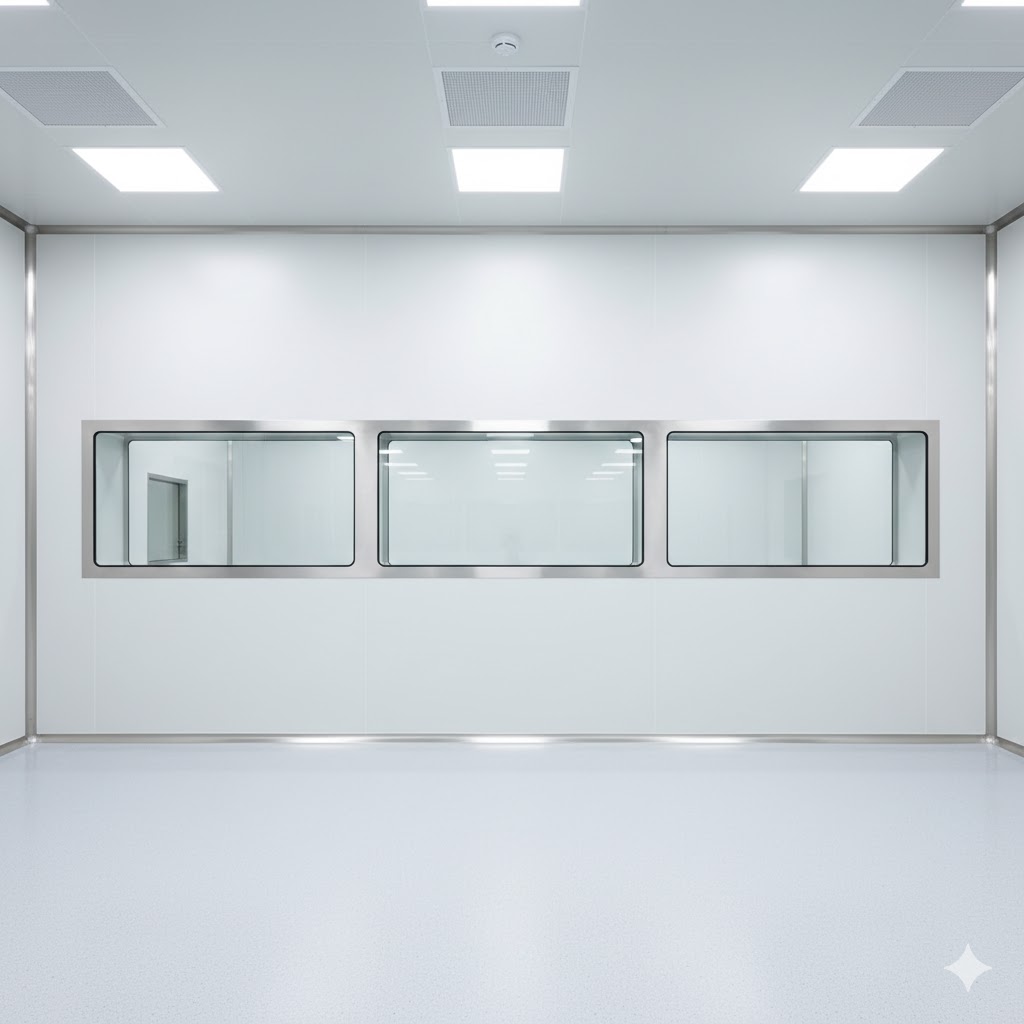

Modular View Panel
Flush-mounted double-glazed window modules designed for seamless integration with cleanroom wall panels.
Construction
Premium laminated safety glass construction.
- 5 + 5 mm laminated safety glass
- Micro-perforated profile
- Integrated silica gel moisture absorption
- Fully silicone sealed
Anti-Fog Performance
Engineered to prevent condensation.
- Prevents fogging
- Supports cleanroom cleaning standards
- Enhanced durability
Design Options
Flexible edge profiles for integration.
- Rounded edge option
- Square edge option
- Double-layered glazing

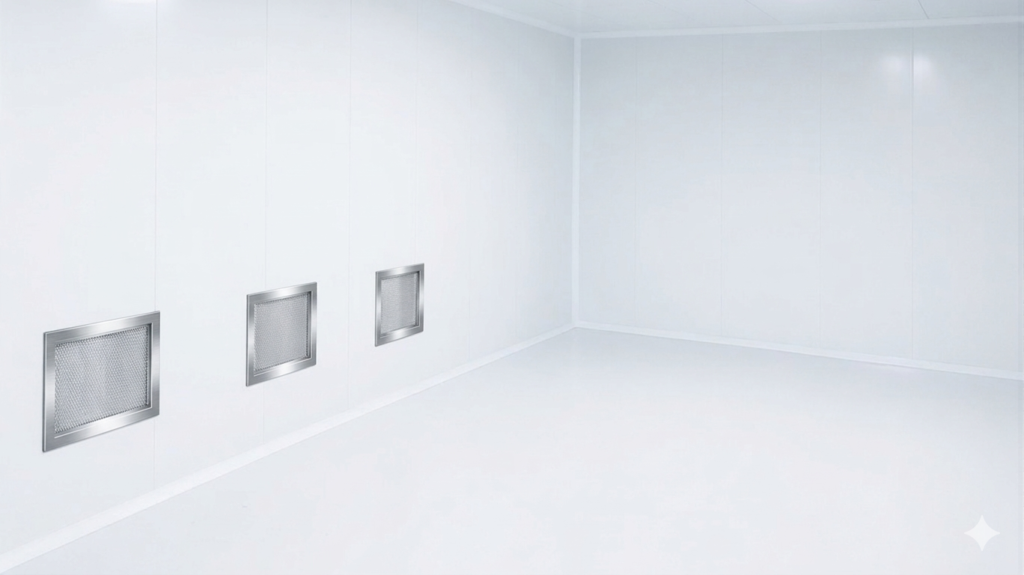

Integrated Risers
Return Air Risers designed for leak-proof installation, controlled airflow, and cleanroom compliance.
Key Features
Engineered for airflow precision.
- Durable, corrosion-resistant
- Low maintenance
- Minimal particle contamination
- Stable air pressure
Compliance
Meets global regulatory standards.
- EU GMP
- FDA
- ISO 14644
Applications
Ideal for critical environments.
- Pharmaceutical manufacturing
- Biotech facilities
- Sterile manufacturing

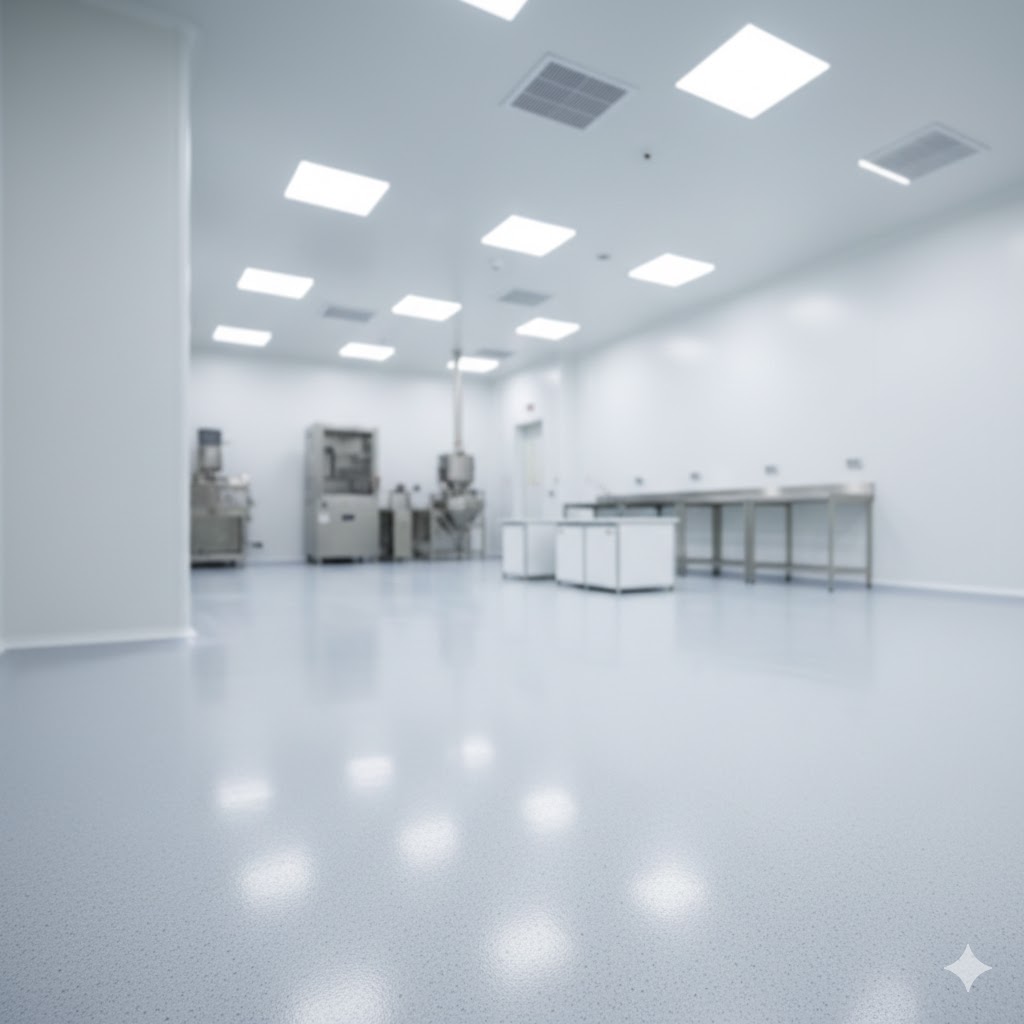

Flooring Solutions
Premium hygienic flooring systems designed for pharmaceutical and controlled environments. Engineered for strict cleanliness, durability, and regulatory standards.
Epoxy Flooring
ndustrial-grade seamless flooring.
- Durable
- Chemical-resistant
- Seamless finish
PU Flooring
Flexible polyurethane flooring systems.
- Flexible
- Impact-resistant
- Easy maintenance
PVC Vinyl Flooring
Cost-effective hygienic flooring.
- Cost-effective
- Hygienic
- Resilient
